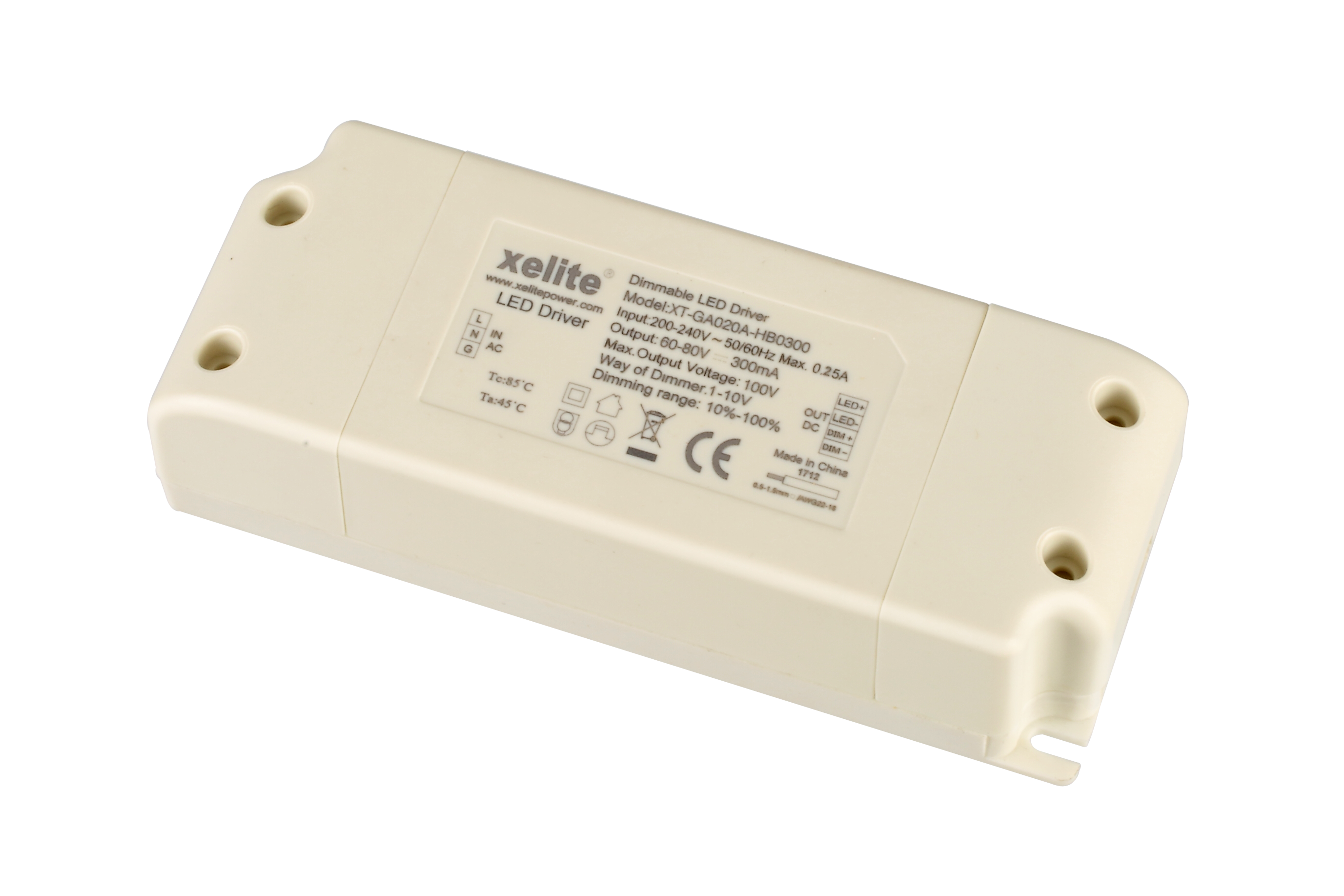

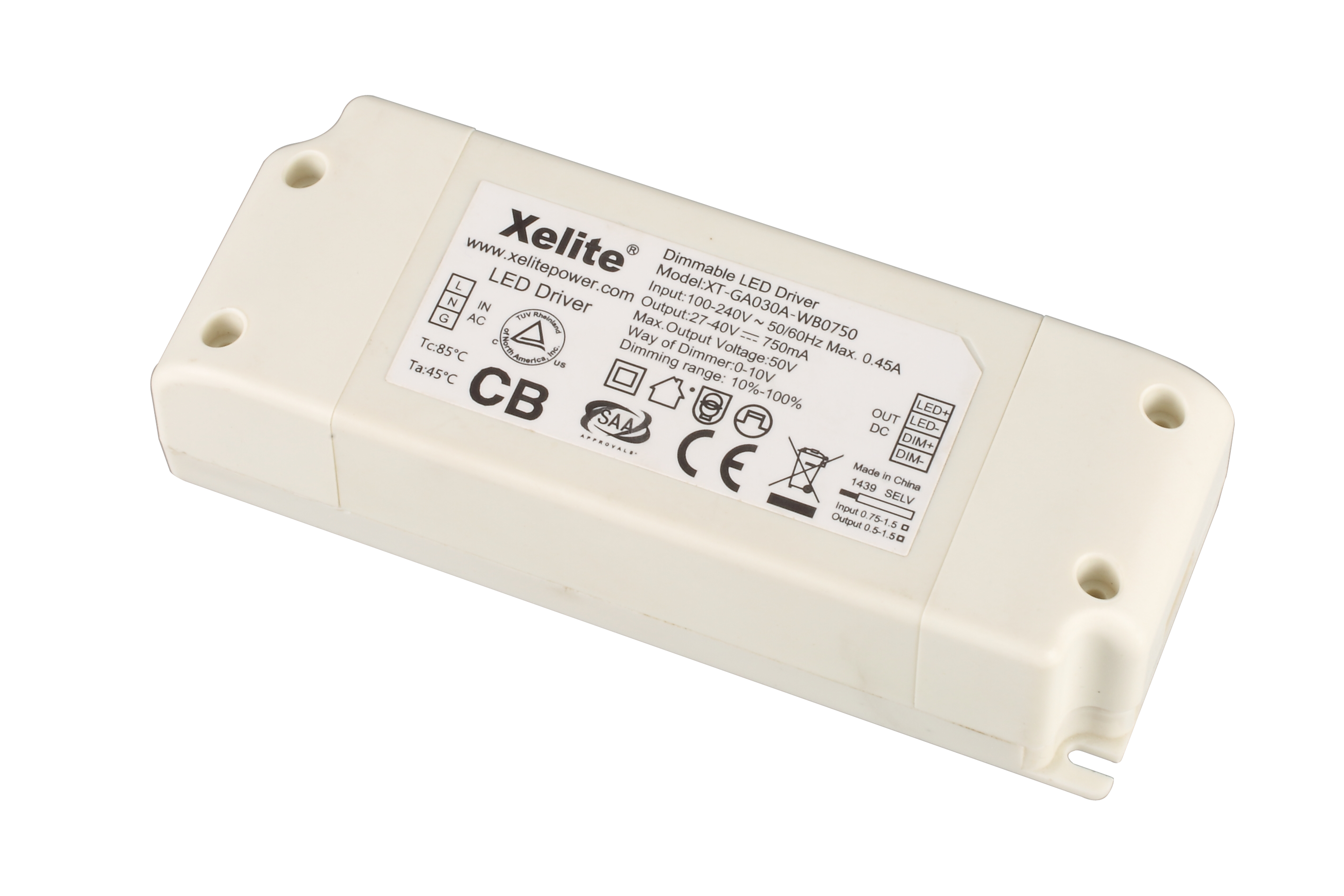

12-40W 0/1-10V Dimmable LED Driver

Product characteristics:

Input voltage:100-240VAC
Used for LED Lighting

High PF
Class ll

Warranty: 3 years
High reliability

Specification parameter list



Model
型号
Power
(Max.)
最大功率
I/P Voltage
输入电压
O/P Voltage
输出电压
O/P Voltage
输出电流
Current Tolerance
电流精度
 Typ.PF
功率因素
Efficiency
效率
Dimension
尺寸
XT-GA012A-HA0300 12W 100-240VAC 24-40V 300mA ±5% ≥0.9 84% L 102*W 38*H 30mm
XT-GA012A-HB0240 12W 100-240VAC 36-50V 240mA ±5% ≥0.9 84% L 102*W 38*H 30mm
XT-GA020A-HA0400 20W 100-240VAC 36-50V 400mA ±5% ≥0.9 85% L 112*W 42*H 30mm
XT-GA020A-HB0500 20W 100-240VAC 27-40V 500mA ±5% ≥0.9 85% L 112*W 42*H 30mm
XT-GA030A-HA0600 30W 100-240VAC 36-50V 600mA ±5% ≥0.9 86% L 123*W 45*H 30mm
XT-GA030A-HB0750 30W 100-240VAC 27-40V 750mA ±5% ≥0.9 86% L 123*W 45*H 30mm
XT-GA030A-HC1000 30W 100-240VAC 20-30V 1000mA ±5% ≥0.9 86% L 123*W 45*H 30mm
XT-GA040A-HA0700 40W 100-240VAC 36-50V 700mA ±5% ≥0.9 86% L 132*W 49*H 30mm
XT-GA040A-HB1000 40W 100-240VAC 27-40V 1000mA ±5% ≥0.9 86% L 132*W 49*H 30mm
XT-GA040A-HC1300 40W 100-240VAC 20-30V 1300mA ±5% ≥0.9 86% L 132*W 49*H 30mm
