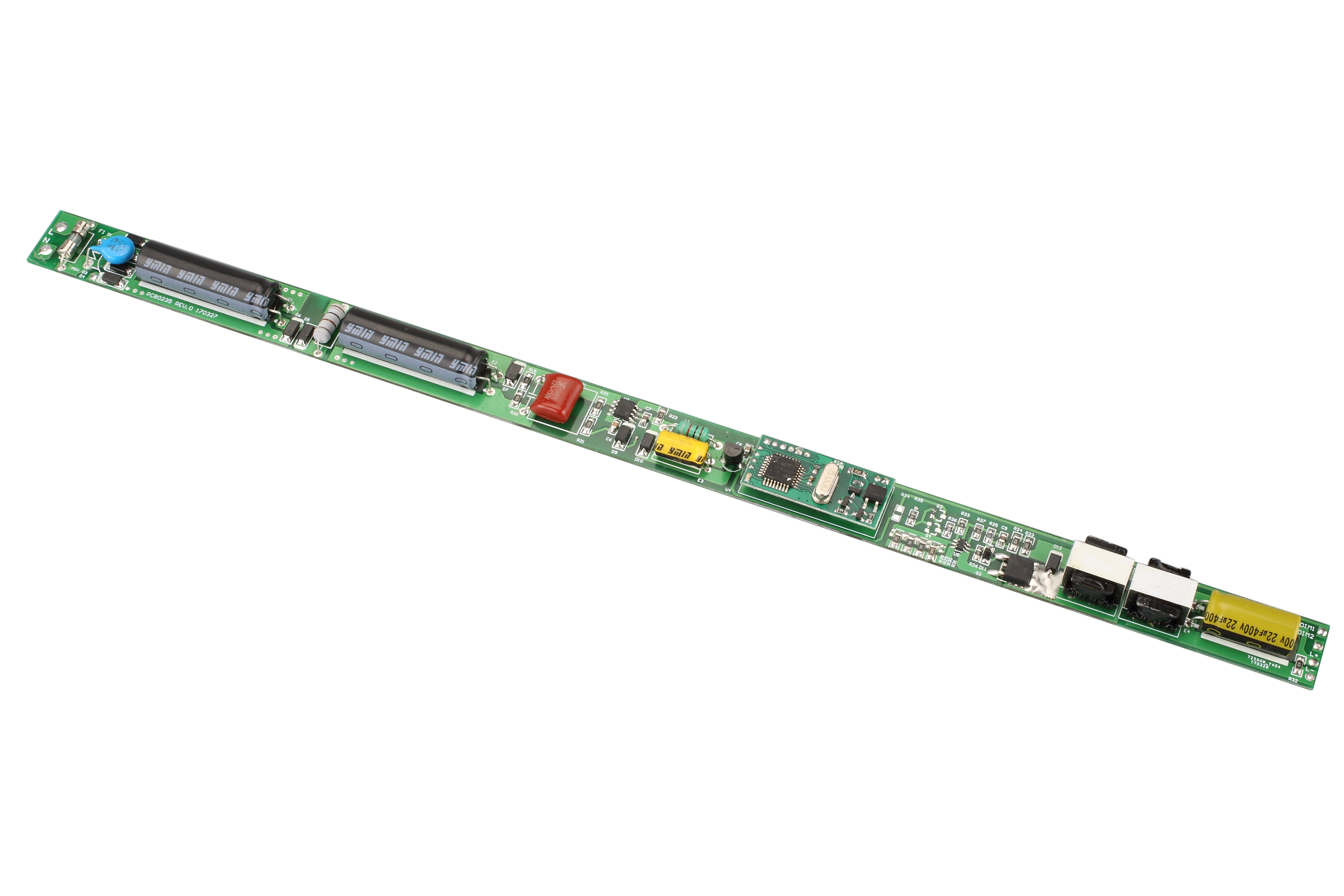

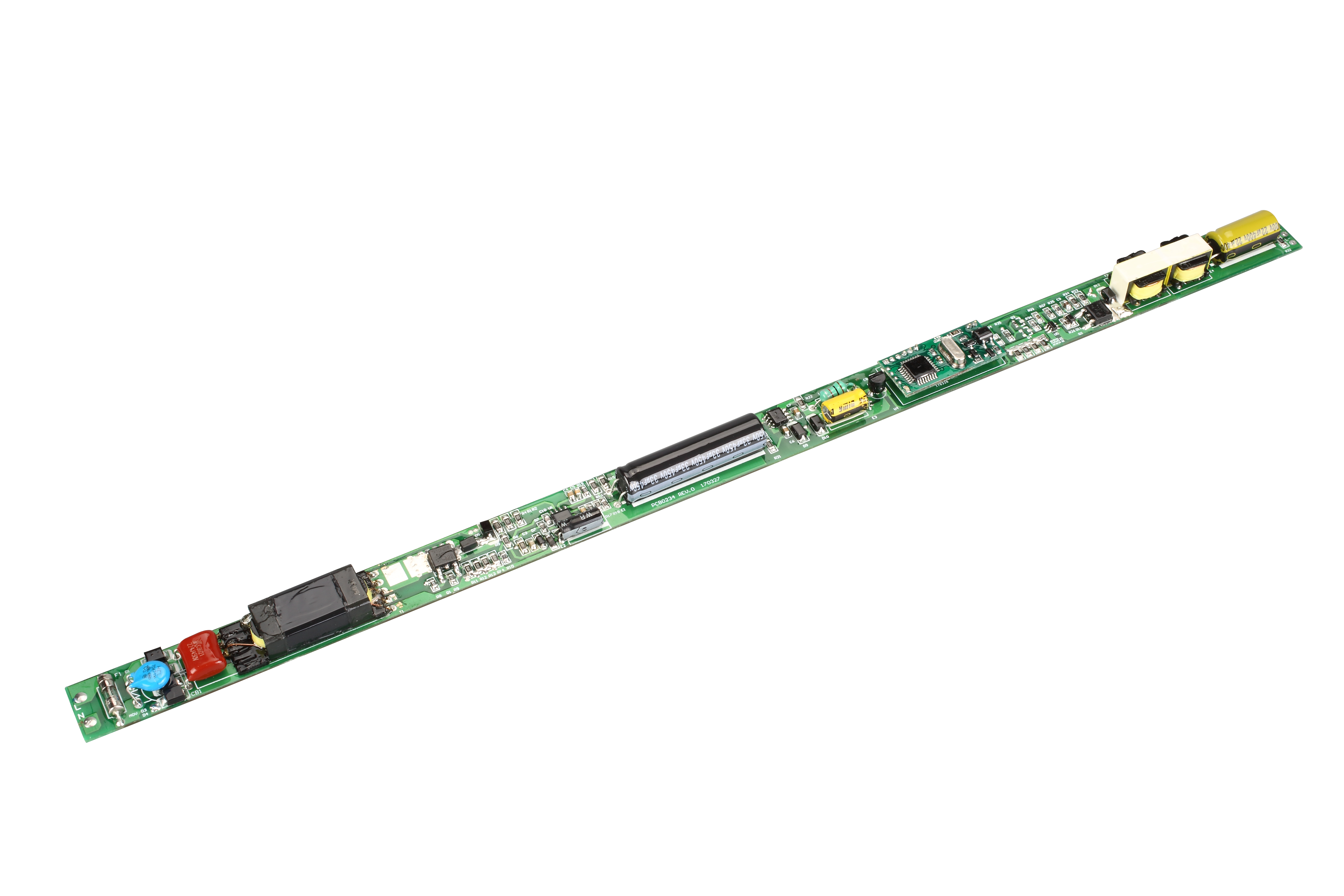

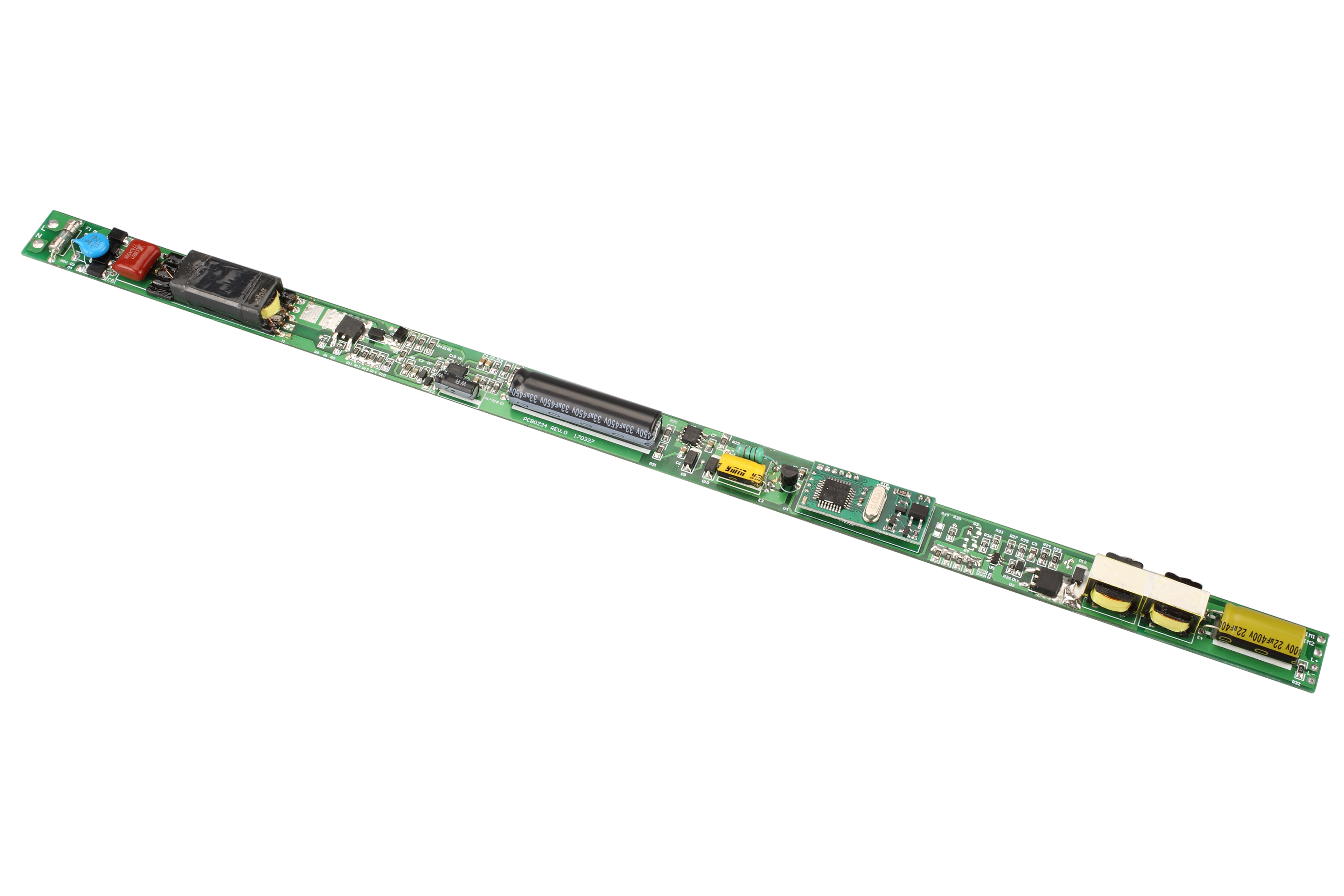

40-70W DALI Dimmable LED Driver

Product characteristics

Input voltage: 200-240VAC
Used for LED Lighting

High PF
Flicker-free

Warranty:3years
High reliability

Specification parameter list



型号 最大功率 输入电压 输出电压 输出电流 电流精度 功率因数 效率 尺寸
Model
Power
(Max.)
 I/P Voltage O/P Voltage O/P Current Current Tolerance
Typ.PF
 Efficiency Dimension
XT-FN040A-HA0450 40W 200-240VAC 50-90V 450mA ±5% ≥0.9 90% L330*W 17*H 10mm
XT-FN040A-HB0310 40W 200-240VAC 90-130V 310mA ±5% ≥0.9 90% L330*W 17*H 10mm
XT-FN040A-HC0660 40W 200-240VAC 30-60V 660mA ±5% ≥0.9 90% L330*W 17*H 10mm
XT-FN070A-HA0450 70W 200-240VAC 90-150V 450mA ±5% ≥0.95 90% L377*W 17*H 10mm
XT-FN070A-HB0350 70W 200-240VAC 150-200V 350mA ±5% ≥0.95 90% L377*W 17*H 10mm
XT-FN070A-HC0280 70W 200-240VAC 200-250V 280mA ±5% ≥0.95 90% L377*W 17*H 10mm
