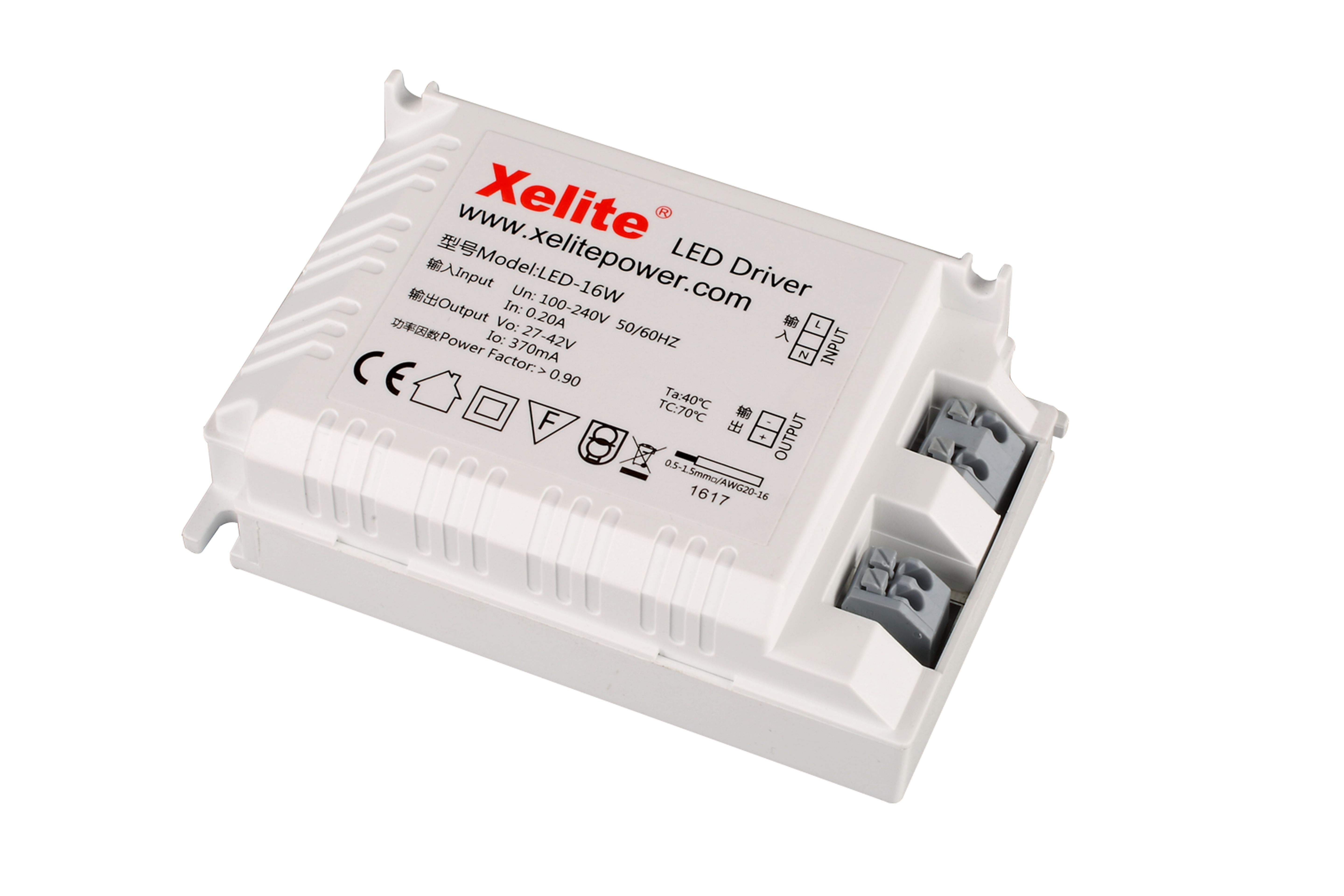

12-40W LED Driver (5 Years Warranty)

Product information

Input voltage:100-240VAC
Used for LED Lighting

High PF
Warranty: 5 years

Conventional Cooling
High reliability

Specification parameter list



型号 最大功率 输入电压 输出电压 输出电流 电流精度 功率因数 效率 尺寸
Model
Power
(Max.)
 I/P Voltage O/P Voltage O/P Current Current Tolerance
Typ.PF
 Efficiency Dimension
XT-GD012F-WA0300 12W 200-240VAC 24-40V 300mA ±5% ≥0.9 88% L 103*W 67*H 30mm
XT-GD012F-WB0240 12W 200-240VAC 36-50V 240mA ±5% ≥0.9 88% L 103*W 67*H 30mm
XT-GD020F-WA0400 20W 200-240VAC 36-50V 400mA ±5% ≥0.9 88% L 103*W 67*H 30mm
XT-GD020F-WB0500 20W 200-240VAC 27-40V 500mA ±5% ≥0.9 88% L 103*W 67*H 30mm
XT-GD030F-WA0600 30W 200-240VAC 36-50V 600mA ±5% ≥0.9 88% L 103*W 67*H 30mm
XT-GD030F-WB0750 30W 100-240VAC 27-40V 750mA ±5% ≥0.9 88% L 103*W 67*H 30mm
XT-GD030F-WC1000 30W 100-240VAC 20-30V 1000mA ±5% ≥0.9 88% L 103*W 67*H 30mm
XT-GD040F-WA0700 40W 100-240VAC 36-50V 700mA ±5% ≥0.9 88% L 103*W 67*H 30mm
XT-GD040F-WB1000 40W 100-240VAC 27-40V 1000mA ±5% ≥0.9 88% L 103*W 67*H 30mm
XT-GD040F-WC1300 40W 100-240VAC 20-30V 1300mA ±5% ≥0.9 88% L 103*W 67*H 30mm
